ECHO
CS-3510ES
CS-3510ES

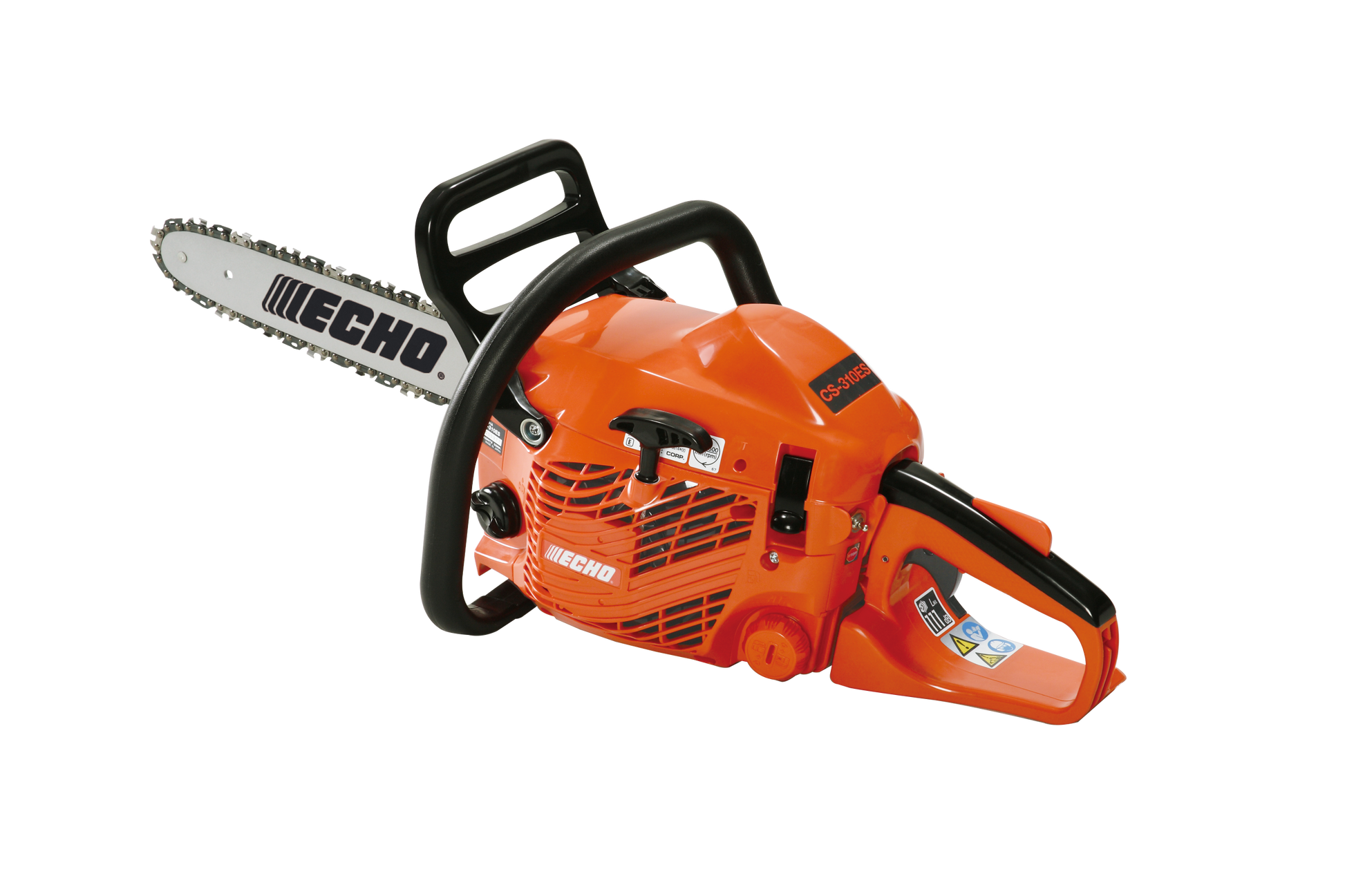

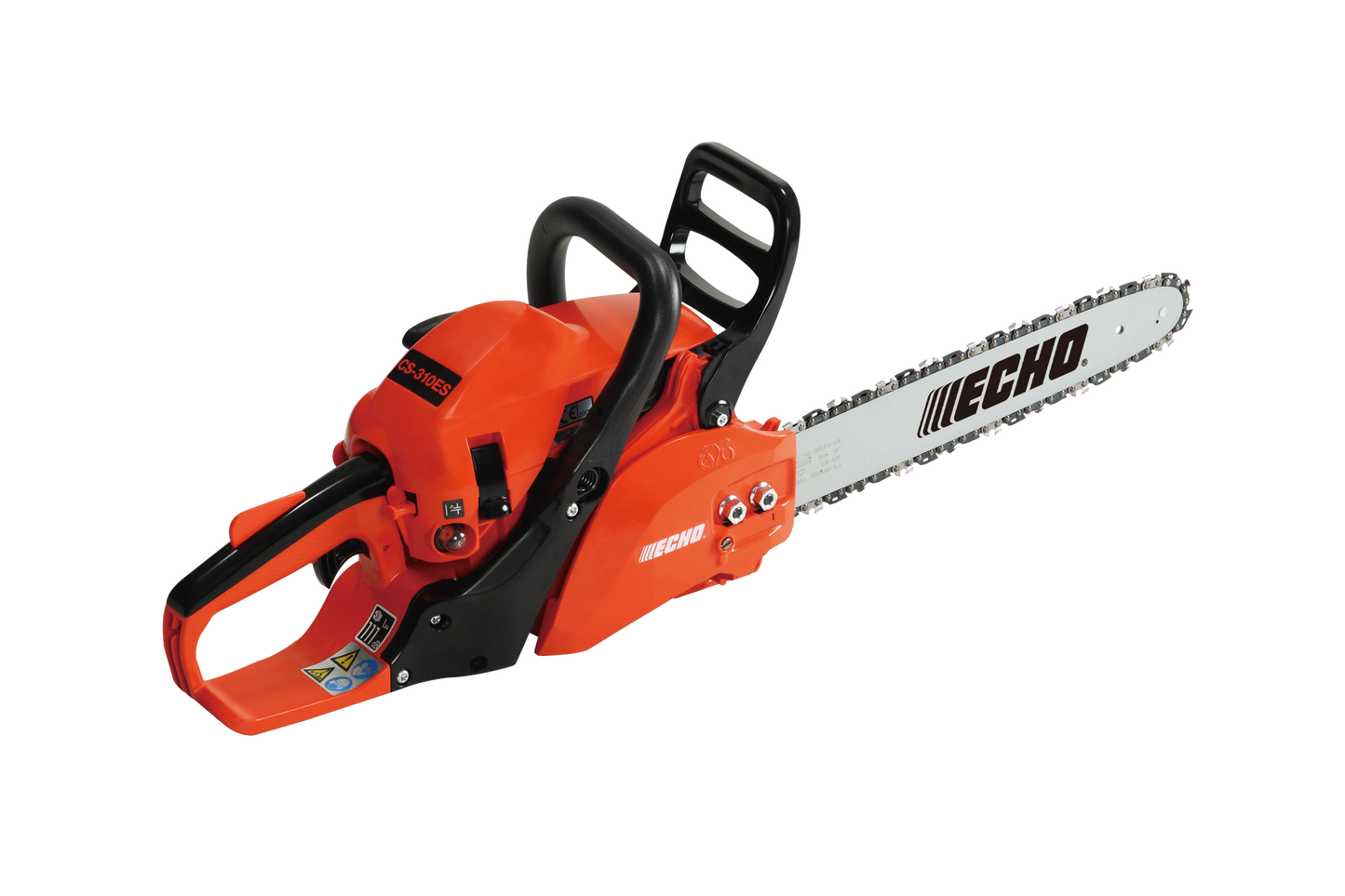

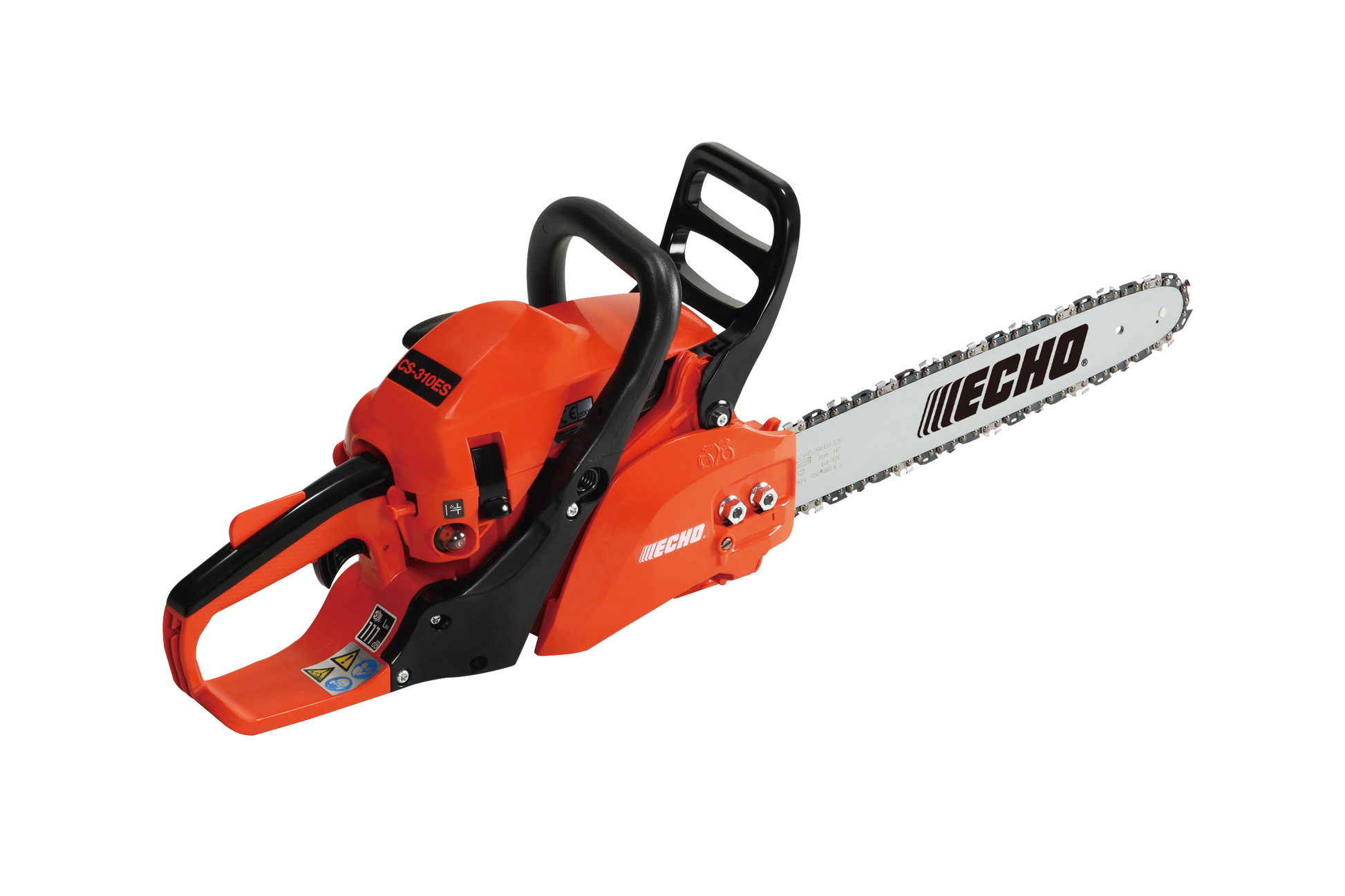

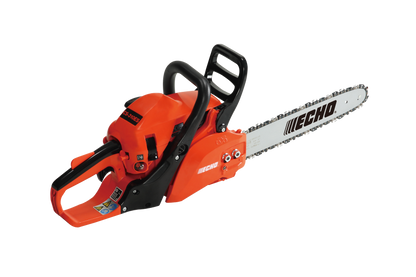

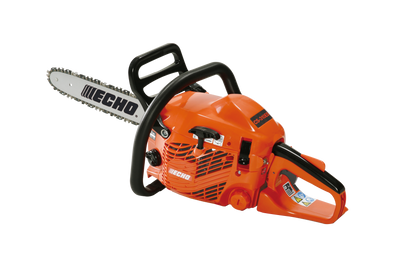

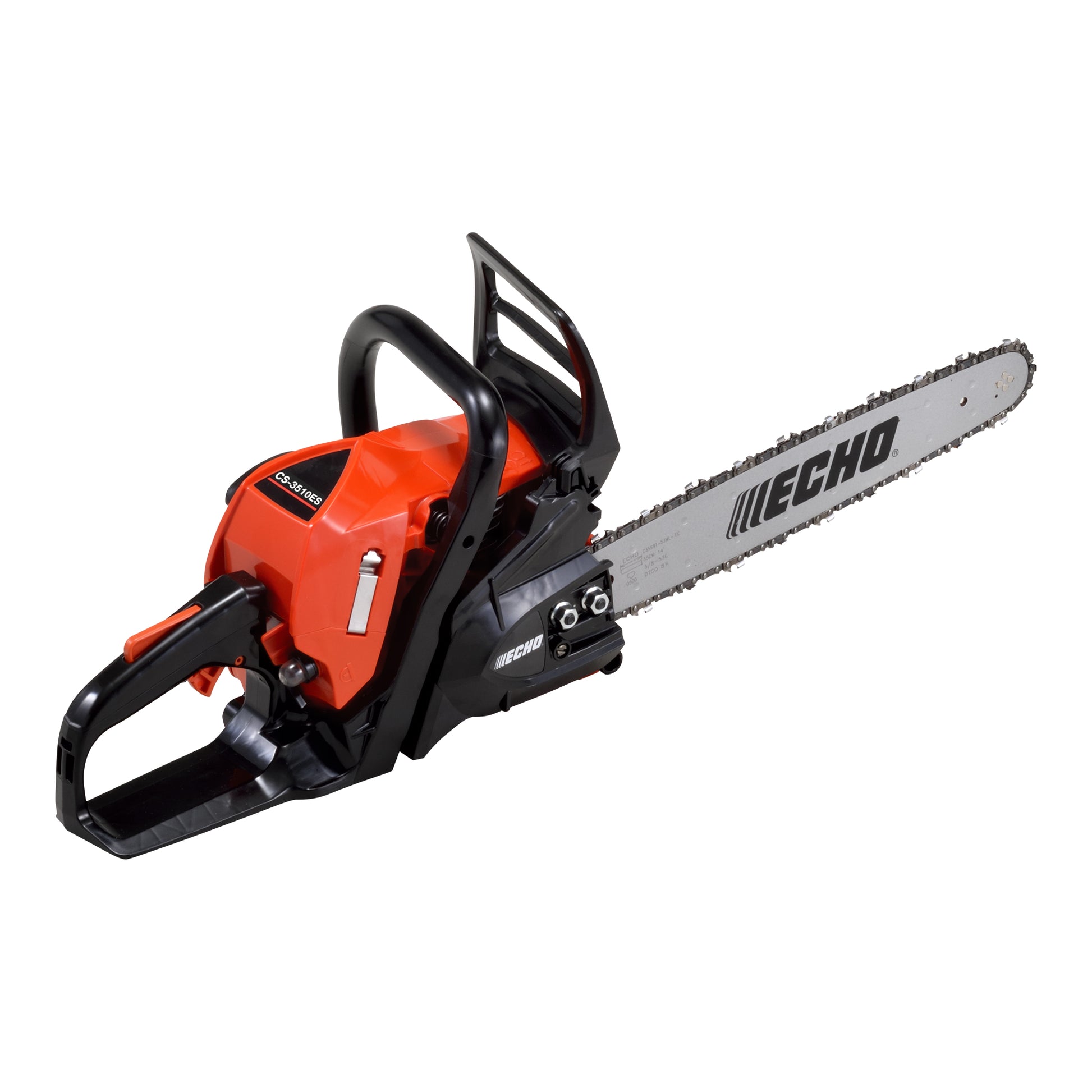

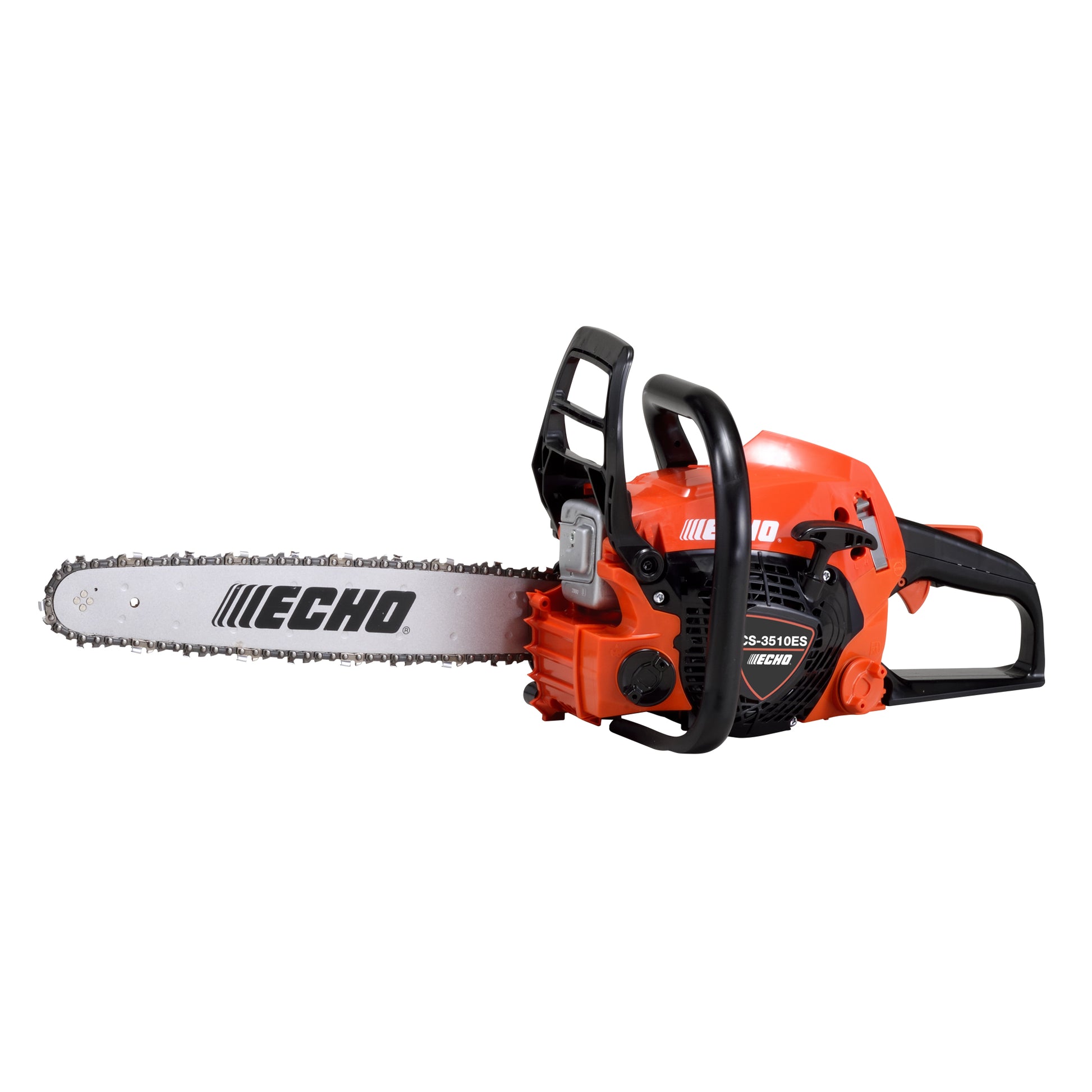

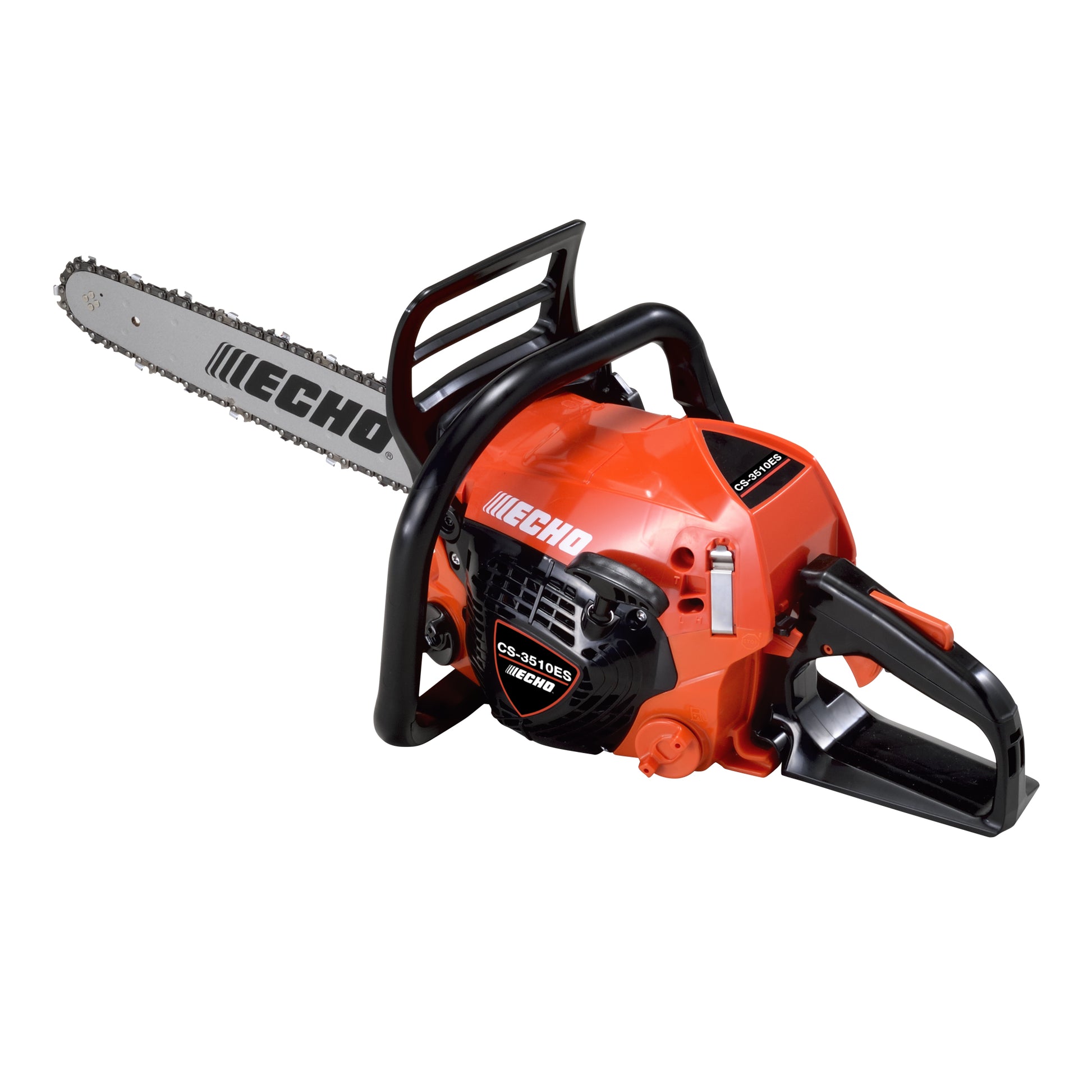

The CS-3510ES is 8% lighter than its predecessor, the CS-352ES, yet has a 15% power gain. It also features an improved, commercial-grade 34.4cc engine and best in class power-to-weight ratio delivering a 1.5kw power output.
A 35cm (14”) 3/8 Tsumara chainsaw bar and Oregon chain for improved cutting efficiency, are fitted as standard, making this an ideal saw for pruning and cutting firewood.
Useful features on this saw include a side-access chain tensioner that allows easy chain adjustment, a momentary switch for quick and easy engine restart and an anti-icing system that prevents the carburettor from freezing in colder months.
Specification
| Engine displacement (cc) | 34.4 |
|---|---|
| Output (kW) | 1.5 |
| Dry Weight (kg) (undefined) | 3.7 |
| Fuel Tank Capacity (ml) | 280 |
| Chain Oil Tank Capacity (ml) | 230 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.85 |
| Start Assist System | ES-start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 3/8 |
| Guide Bar Gauge (inch) | 0.043 (0.050) |
| Applicable Bar Length (cm/inch) | 35 / 14 |
| Sound pressure level (dB(A)) | 101.5 |
| Sound power level (dB(A)) | 110.4 |
| CO² (g/kW・h) | 886 |
| Vibration Front handle/Rear handle (m/s²) | 4.1 / 5.0 |
Features
Power-to-weight ratio
Super light-weight design with exceptional power.
Ergonomics
Designed to maximise efficiency and comfort.
Easy start engine
ECHO’s patented system for effortless starting.
